Direct Electromagnetic Brake

Direct Electromagnetic Brake

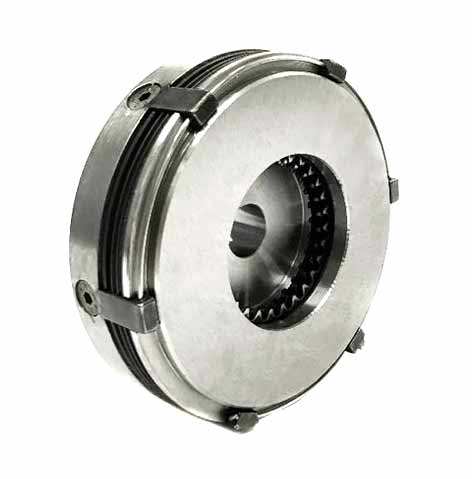

EC/F

Voltage: 24 V dc – 0% + 15%
Application: in oil bath (for dry applications only at very low rpm)
Mounting: The brake is attached to a wall or on an axle with the splined hub.
Static torque: from 7 to 3600 Nm

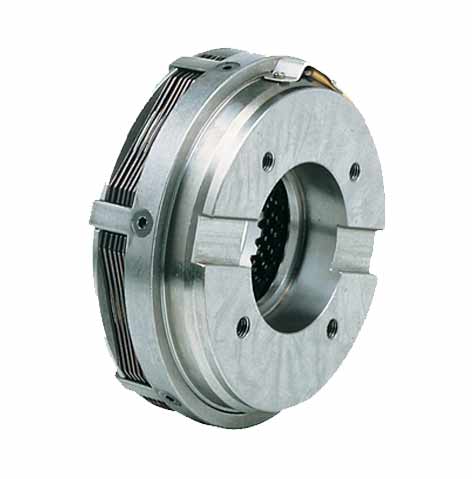

EBLF

Voltage: 24 V dc – 0 + 15%
Application: in oil bath.

Mounting: The brake is attached to a wall or on an axle with the splined hub.

Static torque: from 20 to 3600 Nm.

EMF AND EMF/MD

These brakes are designed for dry operation only.
These brakes have the advantage of having absolutely no drag in the absence of voltage since the friction surfaces are completely separated.
Each unit is composed of an electromagnet and an armature.

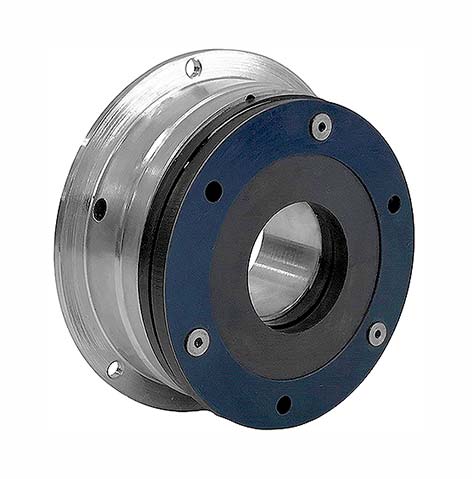

EMFL/DF (Double Flow)
Electromagnetic Double Flow Brake EMFL/DF-B, EMFL/DF-C-ME, EMFL/DF-C-MI

Voltage 24 V dc – 0 + 15%
It is mainly used for dry applications.
Also available with hub (EMFL/DF/C-ME or MI)
The magnet should be attached to the machine frame, while the flat spring or hub should be connected to the rotation axis.
Static moments (Ms) from 45 to 8,000 Nm.

EFAL
Single-disc electromagnetic brake with laminar armor.

Voltage 24 V dc – 0 + 15%
Used in dry applications.
Very small and compact.
Available with external or internal hub.
The magnet is attached to a fixed support, while the armature is connected to the kinematic system.
Static moments (Ms) from 1.8 to 500 Nm.

EMFL
Single-disc electromagnetic brake with lamellar armor and external flanged bushing.

Voltage 24 V dc – 0 + 15%
Used in dry applications.
Also available with external hub.
The magnet is attached to a fixed support, while the hub is grooved to the axis to be braked.
Static moments (Ms) from 6 to 160 Nm.

Extended information

Electromagnetic Brakes and Clutches Complete Catalog

Technical information

Product Data sheet
Vista de un freno electromagnético directo EBLF sin carga Direct Electromagnetic Brakes Download

Part-based reference

Direct Electromagnetic Brakes, EC/F, EBLF, EC/ZD-F, EBLF/ZD, EMFL, EMFL/DF, EMFL/DF-C-ME, EMF, EMF/MD, EFAL, EFAL/ME, EFAL/MI
