FU-Eaton-Airflex FHB Pneumatic Multi-Disc Brake

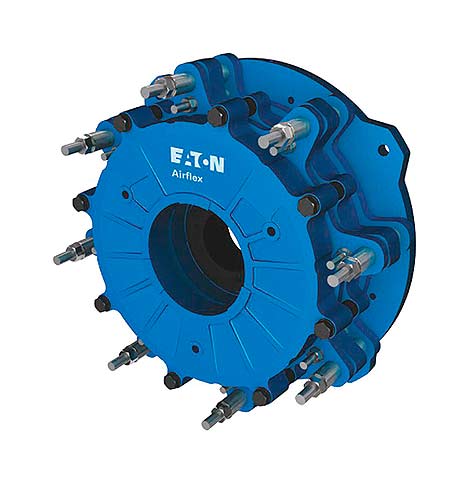

Vista frontal de imagen virtual del Freno Neumático Multidisco FU-Eaton-Airflex FHB

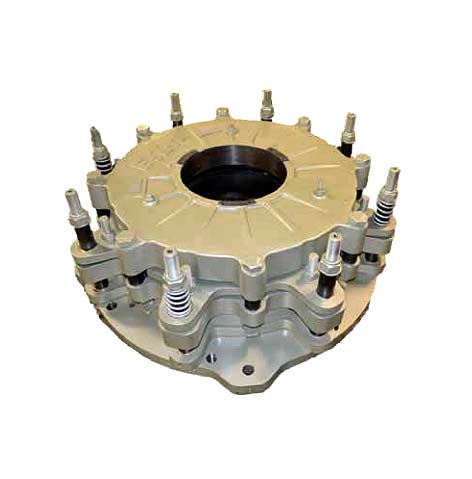

Vista zenital de imagen virtual del Freno FHB

FU-Eaton-Airflex FHB Pneumatic Multi-Disc Brake is an air-cooled spring brake with exceptional friction life and fast friction changes.
Supplied with long wearing organic friction material and a solid cast rotating disc which provides less inertia than typical caliper brakes.

Consult Technical Sheets

Removal of faulty brake

Remove the protection elements.
Remove the bolts
Air disconnection.
Remove other elements that obstruct the exit of the brake.
Apply rear force by means of a lever along the entire perimeter, uniformly, until the brake is released.
The gear is visible.
Remove the lock washer and gear retaining nut
To remove the gear, help yourself with the application of heat around it and apply force in the axial direction using a hydraulic jack.

Installation of the new brake

Clean all exposed surfaces.
Align brake with mounting holes, use hydraulic jack if necessary.
Insert main mounting bolts (check IOM manual for correct values).
Insert the eye bolt to prevent a possible fall when connecting the air.
Make sure the shaft is clean and free of burrs.
Apply torque using torque bolts (refer to IOM manual for proper values).
Replace the protection elements.
Connect the air again.

Installation is accomplished

Extended information


Installation manual -IOM-		Download

Technical information

Product			Data sheet
FU-Eaton-Airflex FHB Pneumatic Multi-Disc Brake			Download

Part-based reference

FHB
