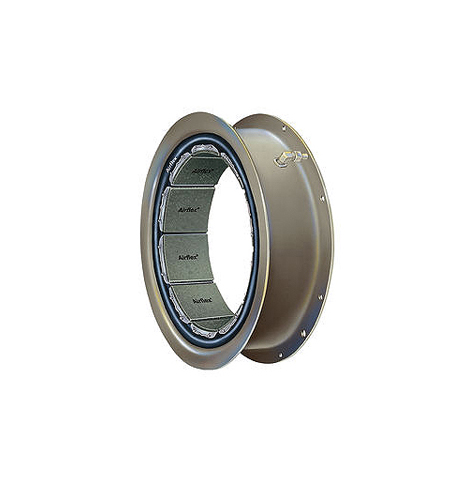

CB FU-Eaton-Airflex Constrictor Clutch – Transmissible torque up to 131,000 Nm. CB elements are used in general industry for power transmission.
They are used as clutches and brakes. Due to its construction and design, its main characteristic is the great torsional elasticity conferred by the tubular neoprene ring meshed with fibers. This flexibility also reduces misalignment between axles.
| Size | Pair | Size | Pair | |||||
| @ 5.2 bar N·m | Wide Series | @ 5.2 bar N·m | ||||||
| 3CB150 | 41 | 20CB500 | 6060 | |||||
| 4CB200 | 113 | 22CB500 | 7040 | |||||
| 5CB200 | 165 | 24CB500 | 8480 | |||||
| 6CB200 | 231 | 26CB525 | 10400 | |||||
| 8CB250 | 485 | 28CB525 | 12000 | |||||
| 10CB300 | 921 | 30CB525 | 13700 | |||||
| 12CB350 | 1500 | 32CB525 | 15500 | |||||
| 14CB400 | 2230 | 36CB525 | 19400 | |||||
| 16CB500 | 3980 | 40CB525 | 23800 | |||||
| 18CB500 | 4970 | 45CB525 | 29400 | |||||
| CB constrictor clutch | Installation, operation and maintenance. | Download |
| Product | Data sheet | ||
|---|---|---|---|
 CB Constrictor Clutch FU-Eaton-Airflex |
Download |
Constrictor CB Clutches, Eaton, Airflex, 4122664, 9492, 303593, 9838, 146507C, 142840JB, 142197JB, 412266-03, 146234C, 146234A, 145097JT, 142096JB, 1 46234B, 142095JB, 146234AF, 142098B, 146234J, 146234F, 146234D, 9943, 142211KM, 142211CB, 142098JC, 146234G, 146234E, 9826, 414361, 146481B, 146234AG, 142265KM, 142264KM, 142211LD, 142197SK, 14219 7JH, 142197JG, 142098JH, 142098JG, 142096JG, 142087JH, 142087JG, 142087JB, 408372, 408371, 407053, 406907, 10110, 9829, 9694, 407050, 1 45987H, 145866Q, 145096MB, 142604DA, 142435DA, 142432DD, 142272KM, 142271KM, 142270KM, 142269KM, 142267KP, 142267KM, 142266KM, 142266LK, 142266TF, 142264KJ, 142253JB, 142211NY, 142211KR, 142197JC, 142197JA, 142096J H, 142096JA, 142095JH, 142095JG, 142095JA, 142087KJ, 142081LB, 104125, 104121, 1034422AA, 104791H, 404143, 105742H, 9944, AA, B, C, DA, H, JA, JB, JC, JG, JH, JT, KJ, KM, LB, MB, A, AF, AG, AN, CB, D, DD, E, F, G, J, K, KP, KR, LD, LK, N, NY, Q, SK, TF,
